Interaction between host genotypes and pathogen strains

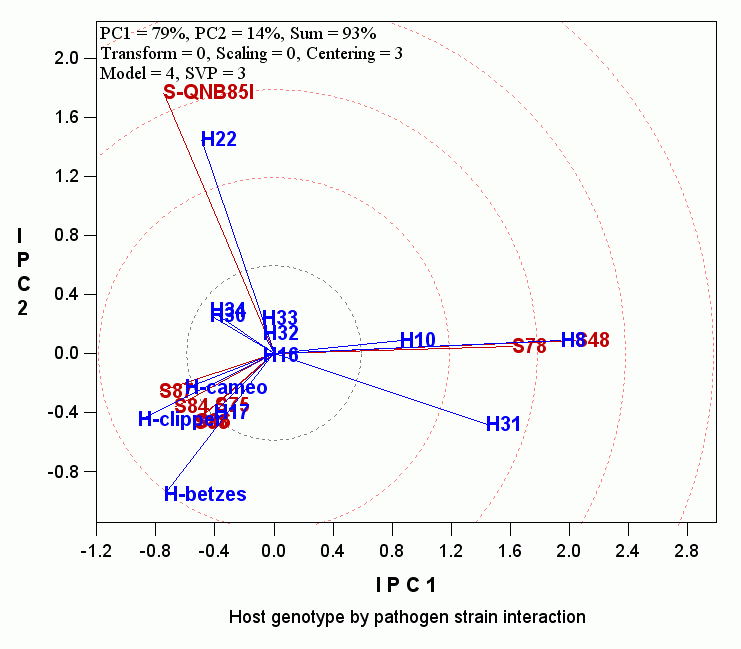

The following biplot is most appropriate for visualizing host by pathogen interactions:

The biplot is based on model 4 (double-centered) so that the main effects of the host and the pathogens are removed; anything you see is host by pathogen interaction, or specific virulence or vertical resistance.

This biplot shows the following:

• The strains fall into three distinct groups: S-qnb851, S48+S78, and other strains.

• These strains have strong specific virulence:  S-qnb851 and S48+S78.

• These genotypes have strong vertical resistance: H8, H31, H22, and H-Betzes.

•   S48 and S78 are particularly virulent to H8 and H31, H10, but not to others.

• S-qnb851is particularly virulent to H22 but not virulent to H-betzes and H31.

• H16, H32, H33, H30, H34 have no vertical resistance: they are either resistant (H16, H32) or susceptible (H30) to all strains (see resistance of genotypes).

To see the original data for the biplot, follow Functions for host by pathogen data

NOTE BUT: The use of the double-centered biplot is not recommended in all cases except for gene expression data. In most cases, G+GE must be considered together to make any sense in terms of entry evaluation or tester evaluation.
